Reactor Tank Configurations

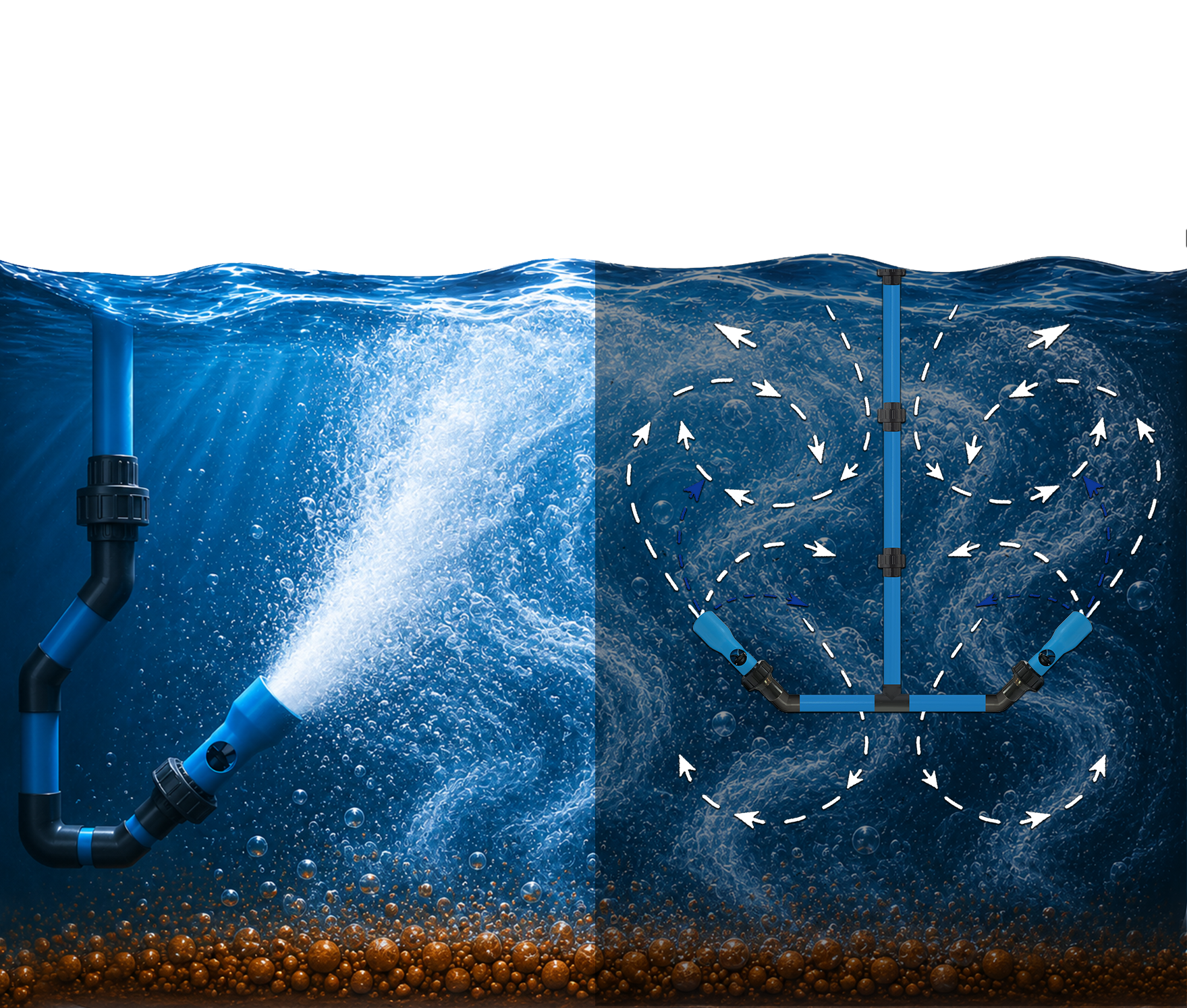

Residential / Small Commercial

Vortex or Fusion Nozzles

Ideal for residential properties, small farms, and commercial buildings with single water tanks up to 5,000 liters.

NanoJet Vortex or Fusion nozzle assembly
Up to 5,000 L tank capacity
Self-cleaning
Low power consumption

Capacity: 1,000 - 5,000 L

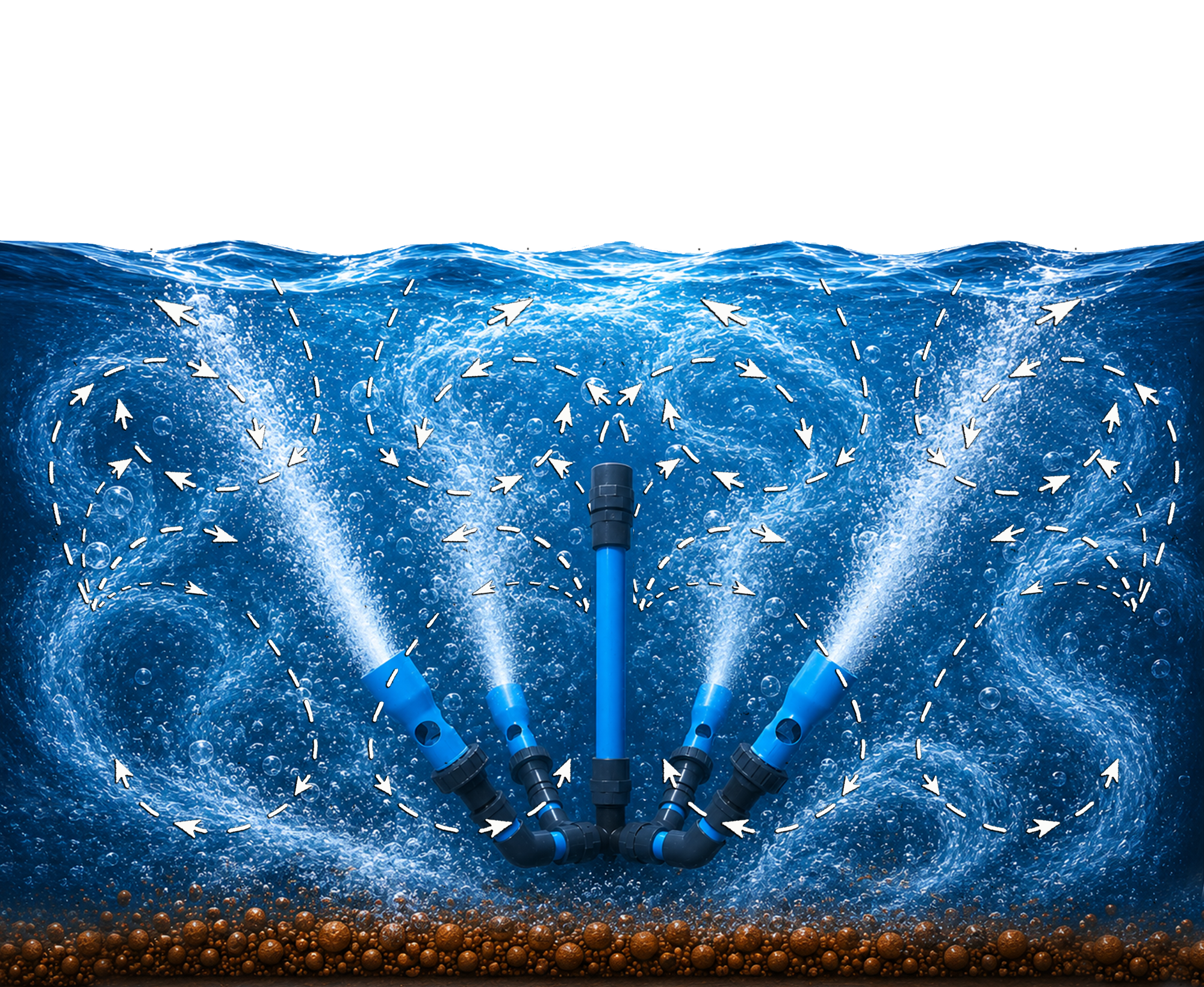

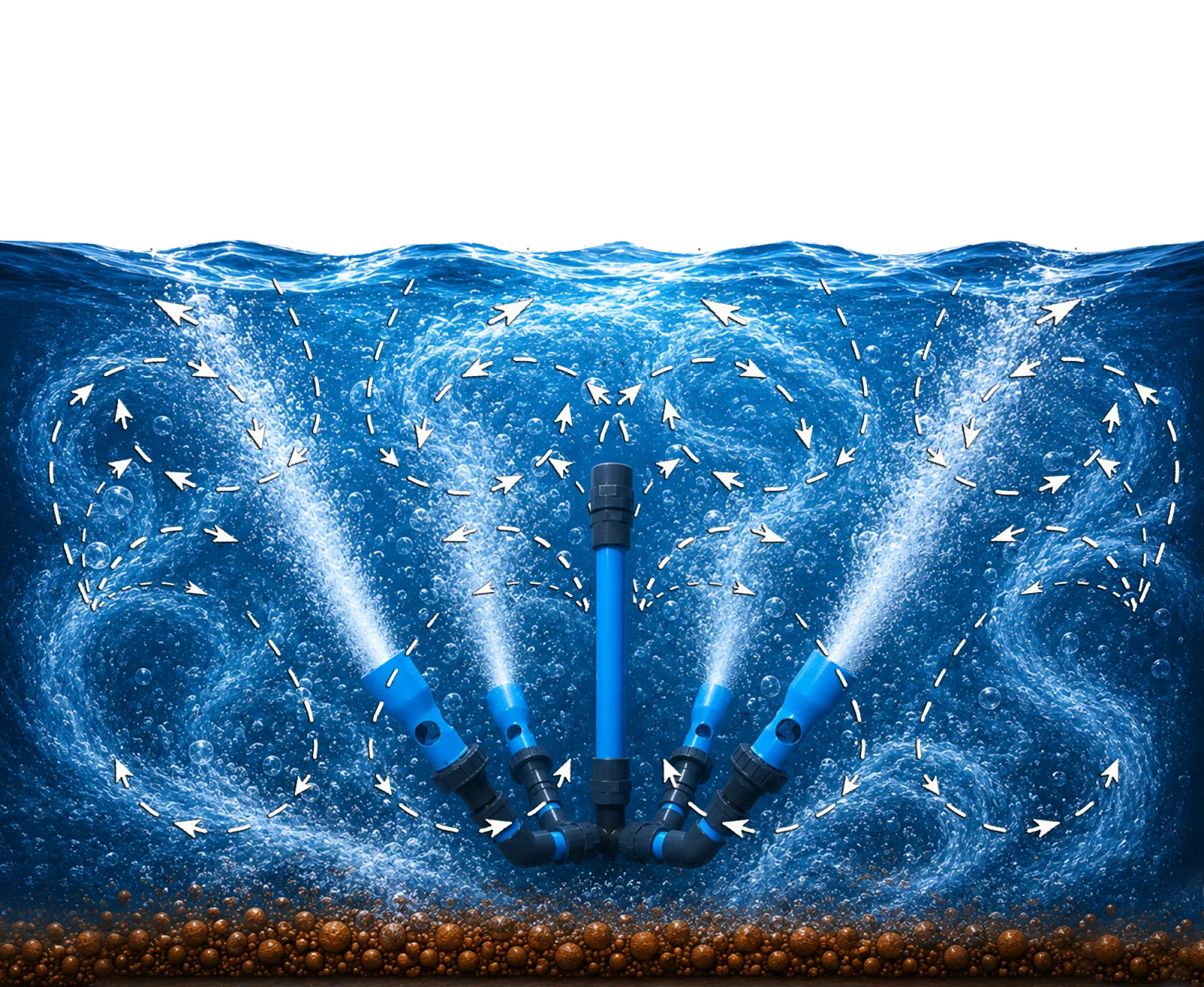

Commercial / Light Industrial

Cyclone 4 Nozzle

Perfect for larger commercial operations, housing complexes, and industrial applications requiring higher throughput.

NanoJet Cyclone nozzle configuration
Up to 30,000 L tank capacity
Redundant operation capability
Enhanced mixing efficiency

Capacity: 5,000 - 30,000 L

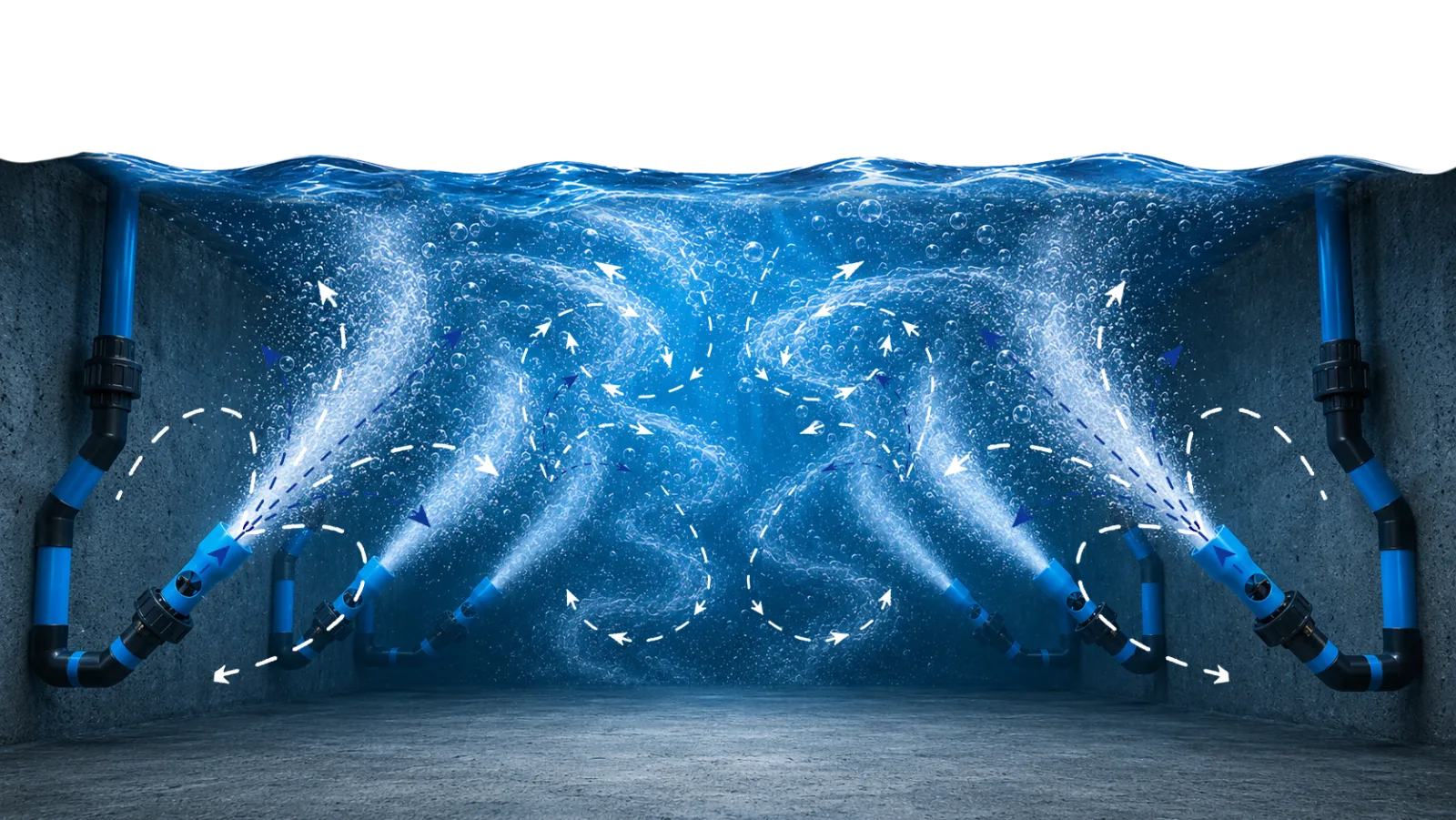

Industrial / Municipal

Multi Nozzle Industrial Array

Heavy-duty solution for large-scale water treatment plants, municipalities, and major industrial facilities.

4+ NanoJet nozzle array
100,000+ L tank capacity
Fully automated control system
Remote monitoring ready
Customizable configuration

Capacity: 50,000 - 500,000+ L

Domestic / Agricultural

Borehole Water Treatment

The NanoJet™ system forms the foundation for the pre-treatment of raw groundwater from boreholes or wellpoints, delivering oxygenated, contaminant-free water.

Enhanced Contaminant Removal
Pathogen Removal
Elimination of Biofilm & Algae
Improved Treatment Efficiency
Sludge Management

Capacity: 1,000 - 20,000+ L

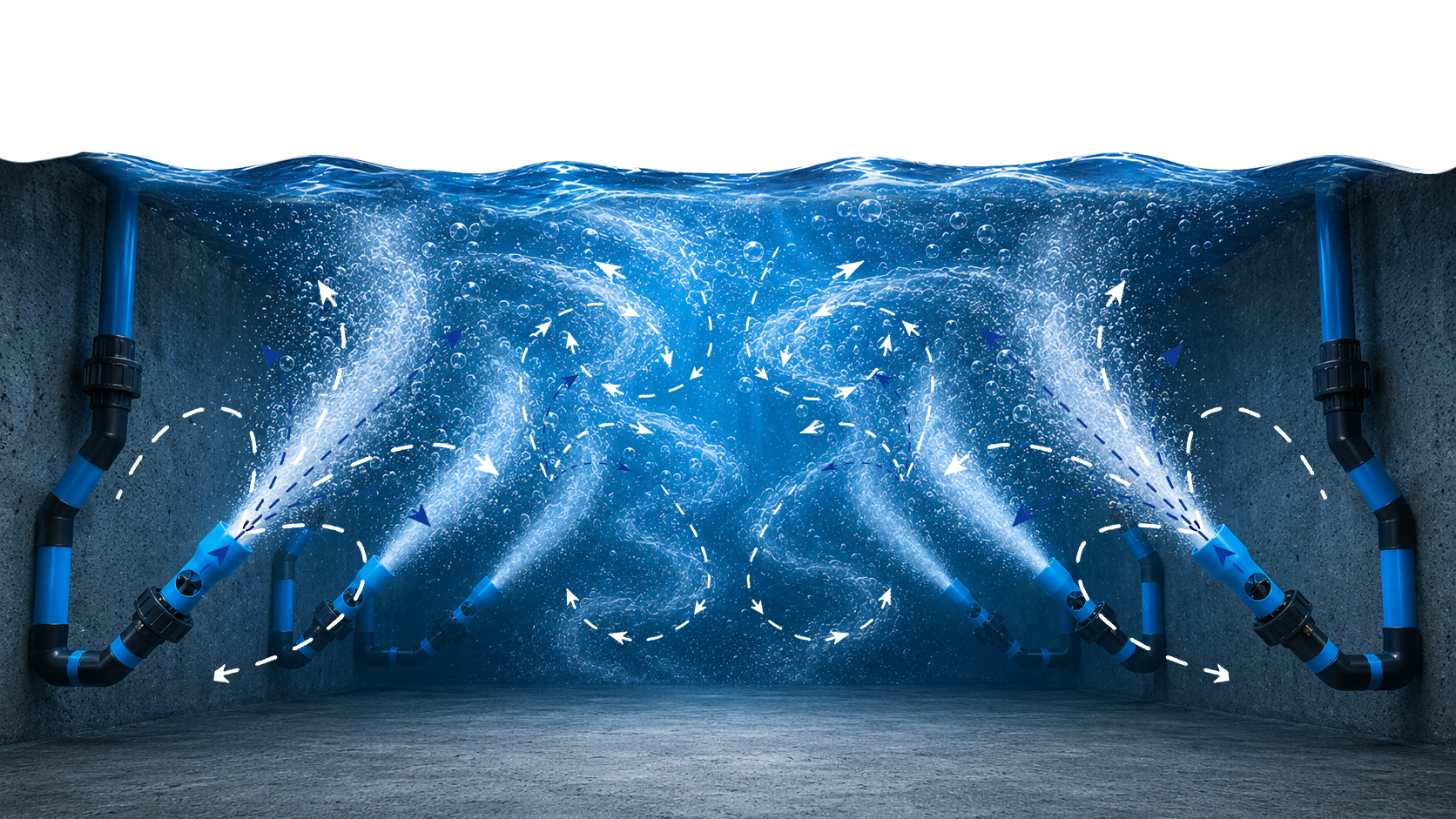

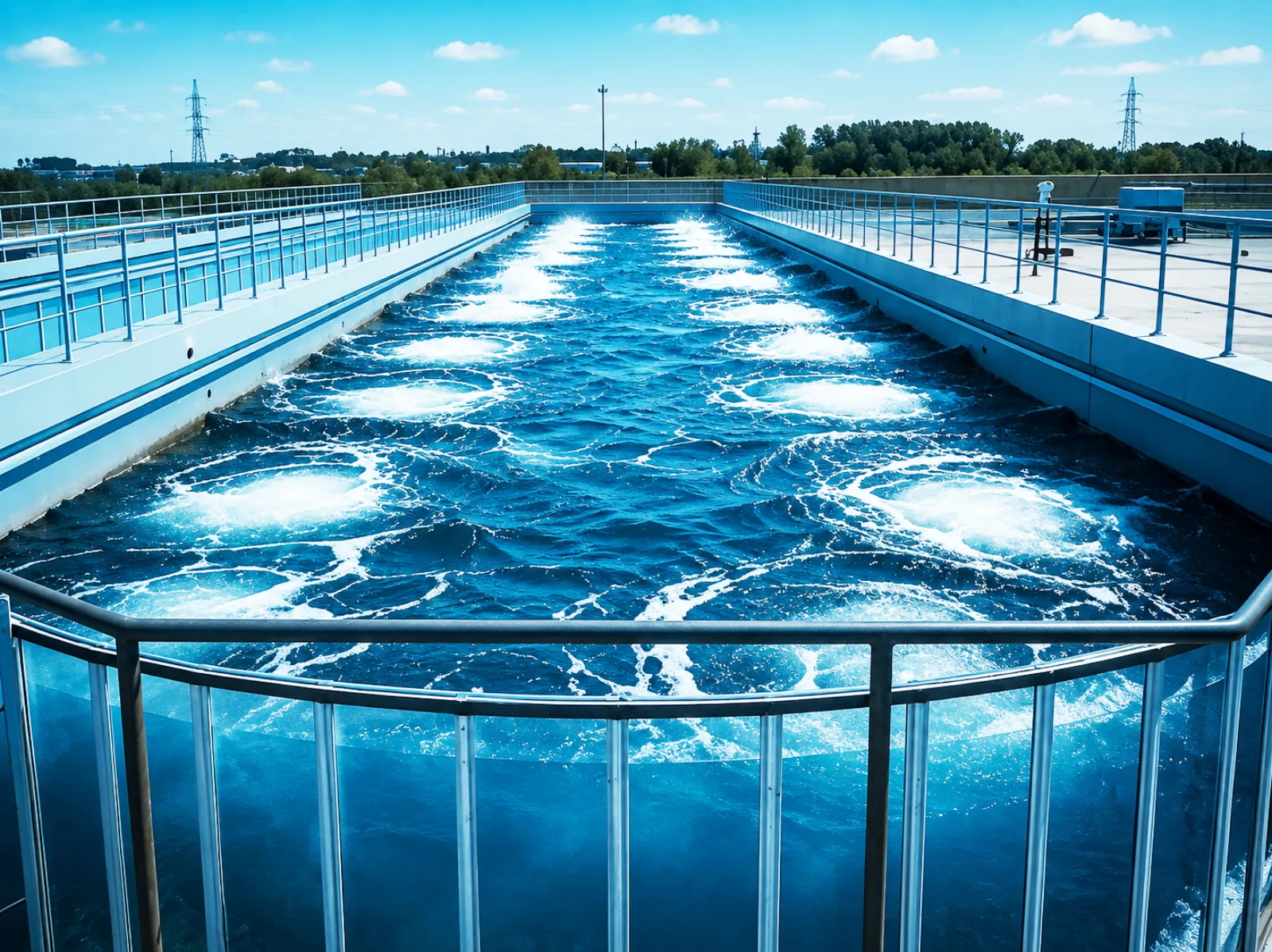

Industrial / Municipal

Vortex Jet Corridor

Heavy-duty deep-bed aeration solution for large-scale water treatment plants, reservoirs, and major industrial facilities.

10+ NanoJet nozzle array
500,000+ L tank capacity
Fully automated control system
Remote monitoring ready
Customizable configuration

Capacity: 10,000 - 500,000+ L

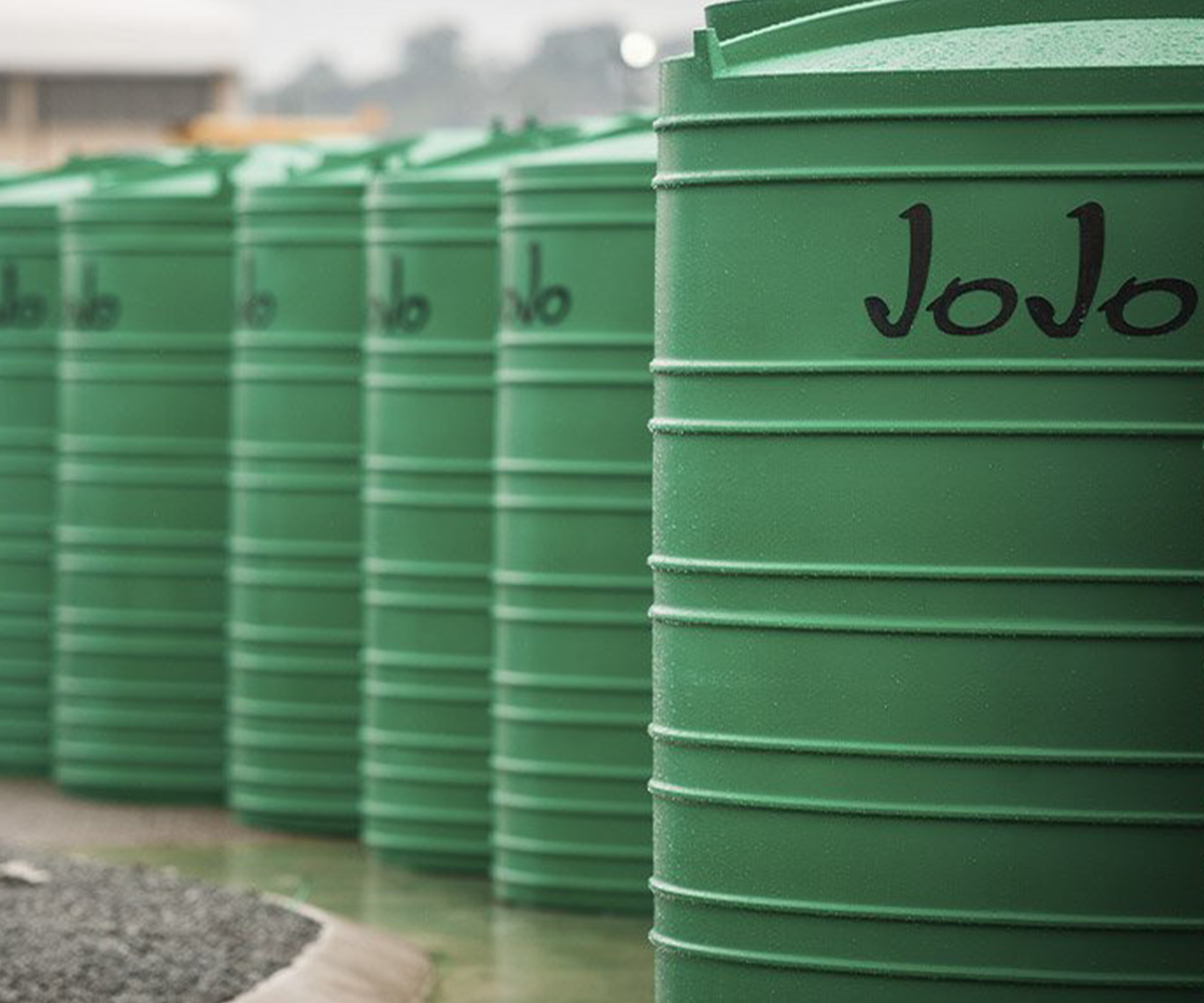

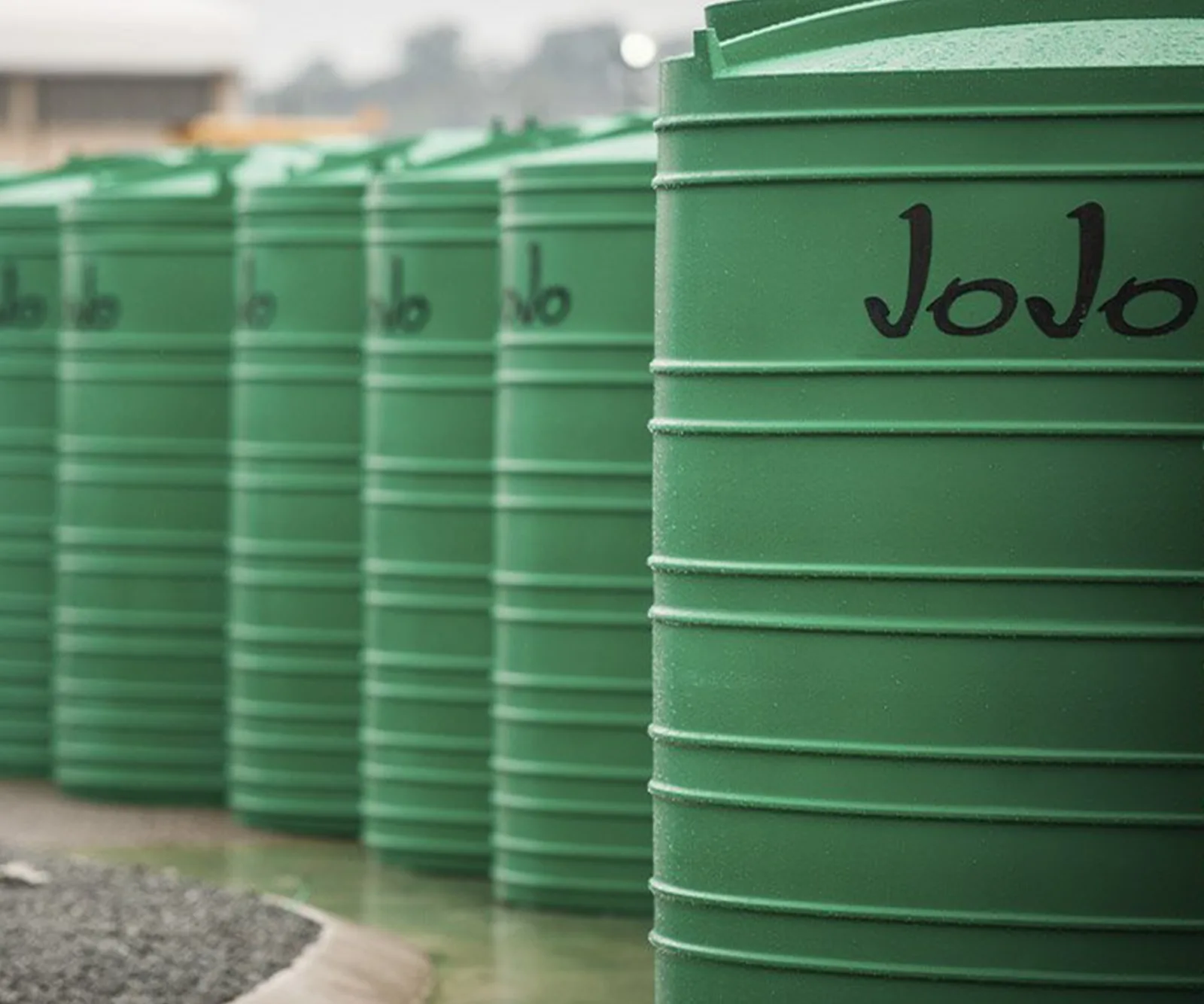

Domestic / Industrial

Standing Water Tanks

Comprehensive water treatment removing contaminants, managing sludge, and maintaining superior water quality with minimal chemical intervention.

Enhanced Contaminant Removal
Pathogen Reduction via Aeration
Sludge Management & Filtration
pH Adjustment
Foundation for Ozone & Chemical Dosing

Capacity: 1,000 - 10,000+ L

Domestic / Agricultural

Hydroponics & Agricultural Tanks

The NanoJet™ system revolutionizes soilless cultivation by delivering super-oxygenated, self-cleaning water circulation.

Maximized Oxygenation at Root Zone
Reduced Pathogen Pressure
Elimination of Biofilm & Algae
Improved Nutrient Homogeneity
Compatible with Organic Nutrients

Capacity: 1,000 - 100,000+ L

Domestic

Eco Pools

Billions of micro and nano bubbles deliver unmatched aeration and oxidation to keep your eco pool healthy, clear, and balanced, naturally.

Superior Aeration & Dissolved Oxygen
Complete Water Circulation & Dead Zone Elimination
Supports Beneficial Biology
Molecular-Level Natural Oxidation
Energy-Efficient Aeration

Capacity: 25,000 - 500,000+ L

Custom Configuration Options

Series Configuration

Multiple tanks connected in series for progressive water treatment stages, ideal for high-purity requirements.

Parallel Configuration

High-volume parallel tank arrays for maximum throughput in commercial and industrial applications.

Custom Engineered Systems

Tailored configurations for unique site requirements including pressurized systems and specialized retrofits.

Need Help Choosing the Right Array?

Our technical team can help you select and design the optimal NanoJet configuration for your specific water treatment needs.

Contact Engineering Team
